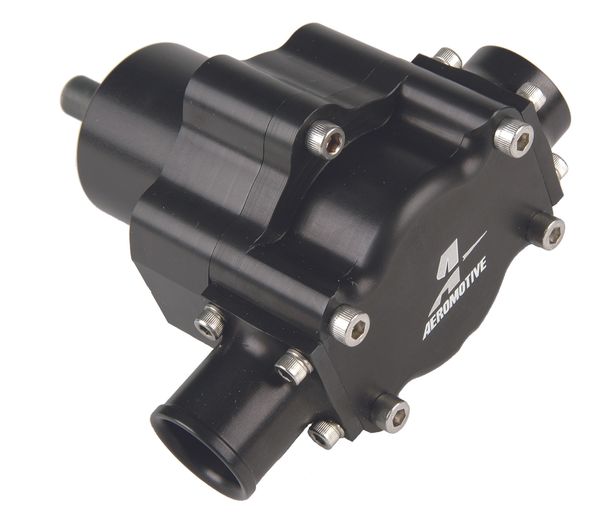

Aeromotive 11115 - Aeromotive Atomic Belt Drive Fuel Pumps

Fuel Pump, Atomic, Belt Drive, Billet Aluminum, Black Anodized, -16 AN/1.25 in. hose barb Inlet, -12 AN Outlet

Pump Material: Billet aluminum

Pump Finish: Black anodized

Free Flow Rate: 12.0 gpm

Pressure Range (psi): 2-200

Inlet Quantity: One

Inlet Attachment: Hose barb

Inlet Size: 1 1/4 in.

Outlet Quantity: One

Outlet Attachment: Female threads

Outlet Size: -12 AN O-ring

Mounting Bracket Included: No

Pulley Included: No

Pulley Style: Gilmer

Regulator Included: No

 Aeromotive Atomic belt drive fuel pumps are designed to be operated by a pulley and a cog belt, allowing the pumps to be driven from your crankshaft. They can be used in low or high-pressure applications and flow in excess of 4,500 lbs. per hour and over 12 gpm at 100 psi. The Aeromotive Atomic belt drive fuel pumps will support from 1,500 to over 5,000 hp on gas and over 2,500 hp on ethanol and methanol fuels. Their special Type III hardcoat anodized finish protects the 6061-T6 aircraft billet aluminum alloy housing from harsh fuels while looking great. The body features removable ports with a -16 AN/1.125 in. hose barb inlet and a female -12 AN O-ring boss outlet port. This new modular inlet/outlet port design opens the door for you to interchange attachment styles to fit your engine's needs. If you're building a high-horsepower engine, use one of these Aeromotive Atomic belt drive fuel pumps as the foundation of your fuel system.
