Aeromotive 11117 - Aeromotive Atomic Hex Drive Fuel Pumps

Fuel Pump, Atomic, Hex Drive, Billet Aluminum, Black Anodized, -16 AN/1.25 in. hose barb Inlet, -12 AN Outlet

Pump Material: Billet aluminum

Pump Finish: Black anodized

Free Flow Rate: 12.0 gpm

Pressure Range (psi): 2-200

Inlet Quantity: One

Inlet Attachment: Hose barb

Inlet Size: 1 1/4 in.

Outlet Quantity: One

Outlet Attachment: Female threads

Outlet Size: -12 AN O-ring

Mounting Bracket Included: No

Pulley Included: No

Regulator Included: No

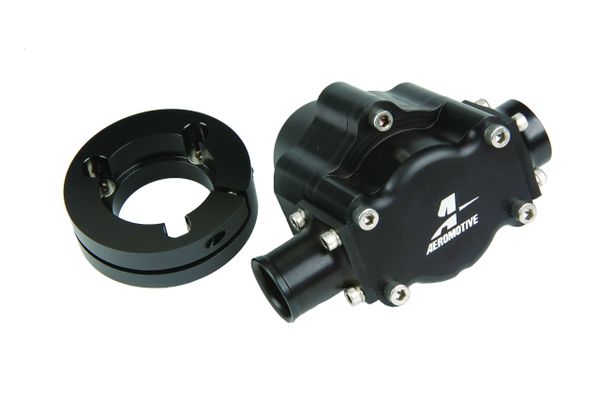

Aeromotive Atomic hex drive fuel pumps feature a hex drive shaft and mounting collar designed to be mounted and driven directly from the back of a properly prepared external oil pump or by the cam through a timing cover adapter. Offering the convenience of direct drive, these pumps flow in excess of 4,500 lbs. per hour! They utilize a standard 3/8 in. hex drive shaft and an adjustable billet mounting collar with a standard 3-bolt mounting pattern and hardware. They feature removable ports with a 1.25 in. inlet and an ORB-12 outlet port. Aeromotive Atomic hex drive fuel pumps will support over 5,000 hp gas and 2,500 hp methanol. These pumps are constructed with a 6061 T6 aircraft aluminum alloy housing and are Type III hard coat anodized for durability
