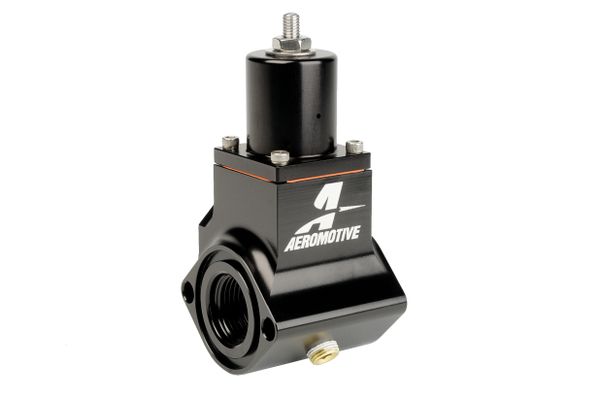

Aeromotive 11217 - Aeromotive A3000 Drag Race Regulators


Fuel Pressure Regulator, A3000 Drag Race, 14-24 psi, Inline, Return Style, Aluminum, Black Anodized

Pressure Range (psi): 14-24

Regulator Style: Return

Regulator Location: Inline

Boost/Vacuum Reference Port: No

Gauge Port: Yes

Mounting Bracket Included: Yes

Fittings Included: No

Rebuildable: No

Inlet Quantity: One

Inlet Attachment: Female O-ring

Inlet Size: -10 AN O-ring

Outlet Quantity: One

Outlet Attachment: Female O-ring

Outlet Size: -10 AN O-ring

Return Attachment: Female threads

Return Fitting Size: -8 AN O-ring

Regulator Material: Aluminum

Regulator Finish: Black anodized

Aeromotive A3000 drag race regulators have already visited the winner's circle a number of times! Fueling consistency, volume, and performance are paramount on quarter-mile tracks, so top drivers choose this light, user-friendly unit. The modular design allows for the pump and regulator to detach from one another and the filter to be removed, as well—and both peripheral pieces can be clocked every 45 degrees in either direction. By using an O-ring seal on both the filter assembly and the bypass regulator where it seals to the pump base, along with multiple mounting holes in both sides of the pump base, Aeromotive has created a system that excels in applications where space is at a premium.
