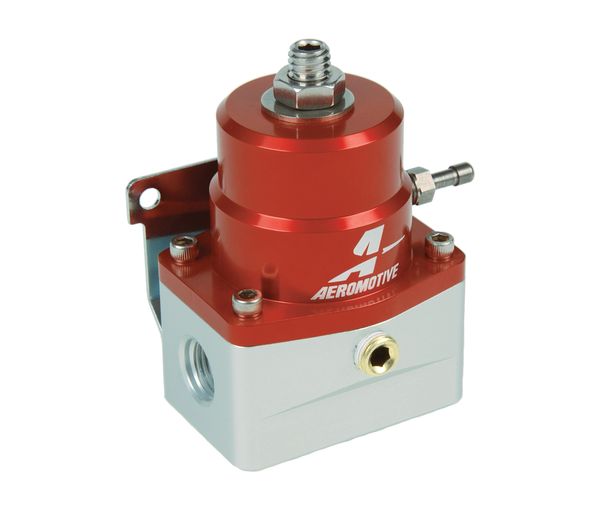

Aeromotive 13109 - Aeromotive A1000-6 Injected Bypass Regulators

$209.95

Fuel Pressure Regulator, 40-75 psi, Clear and Red Anodized, Universal

Pressure Range (psi): 40-75

Regulator Style: Return

Regulator Location: Inline

Boost/Vacuum Reference Port: Yes

Boost/Vacuum Rise Ratio: 1:1

Gauge Port: Yes

Mounting Bracket Included: Yes

Fittings Included: No

Rebuildable: Yes

Inlet Quantity: One

Inlet Attachment: Female threads

Inlet Size: -6 AN O-ring

Outlet Quantity: One

Outlet Attachment: Female threads

Outlet Size: -6 AN O-ring

Return Attachment: Female threads

Return Fitting Size: -6 AN O-ring

Regulator Material: Aluminum

Regulator Finish: Clear anodized

Aeromotive A1000-6 injected bypass regulators were developed for high-horsepower EFI applications where -6 AN fuel lines are used for supply and return. These regulators are alcohol compatible and feature two -6 AN inlet ports and one -6 AN return port. They're beautifully finished with Type II bright red and clear anodized coatings and deliver long life, performance, and reliable operation.
